Overview - Front Brakes, Pr Numbers 1LC, 1LG And 1LJ

WARNING: This page is about a different car, the 2022 Audi S3, 2022 Audi RS 3, 2022 Audi A3 Quattro, and 2022 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

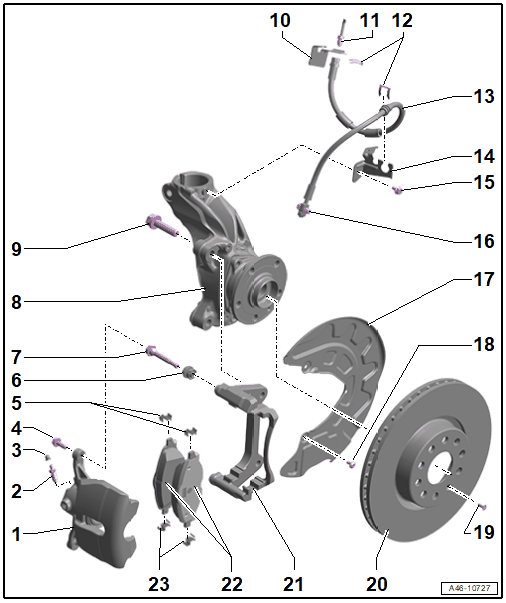

Fig 1: Exploded View Of Front Brakes, PR Numbers 1LC, 1LG and 1LJ

Courtesy of AUDI OF AMERICA, LLC

Brake Caliper
- Allocation. Refer to the Parts Information.
- Do not disconnect the brake hose when replacing a brake pad
- Refer to BRAKE CALIPER, REMOVING AND INSTALLING
- Refer to BRAKE CALIPER, REPLACING
Bleed Screw
- 11 Nm
Protective Cap
Bolt
- Self-locking
- Replace after removing
- 35 Nm
Brake Pad Retaining Plate
Bearing Bushing
Guide Pin
Wheel Bearing Housing
Bolt
- 200 Nm
Bracket
- For the brake line/hose
Brake Line
- Do not change the bending shape.
- Replace a damaged or bent brake line
- Tightening Specifications
  - With standard tool: 14 Nm
  - With special tool Figure 12 Nm
Springs
- Replace if damaged
Brake Hose
- Make sure the brake hose is routed correctly. Make sure the brake hose is not pinched, bent, twisted or rubbing against the vehicle
- Replace if damaged
- Make sure that tabs are properly seated in the grooves on the bracket.
Bracket
- For brake hose and wire
Bolt
- 8 Nm
Banjo Bolt
- Permanent with seals
- Clean any corrosion from the sealing surface on the brake caliper
- If damaged, replace the brake hose
- 35 Nm
Brake Shield
- Refer to BRAKE SHIELD, REMOVING AND INSTALLING
Bolt
- 12 Nm
Bolt
- 8 Nm
Brake Rotor
- Allocation. Refer to the Parts Information.
- Wear limit. Refer to TECHNICAL DATA, BRAKES .
- Always replace on both axles, at the same time the brake pads must also be replaced
- Do not use excessive force to separate the brake rotor from the wheel hub. Use rust remover, if necessary, otherwise the brake rotor could be damaged.
- Refer to BRAKE ROTOR, REMOVING AND INSTALLING
Brake Carrier
Brake Pads
- Allocation. Refer to the Parts Information.
- Check the pad thickness. For the wear limit, refer to BRAKE PADS, CHECKING THICKNESS .
- Always replace on both axles.
- Refer to BRAKE PADS, REMOVING AND INSTALLING, PR NUMBER 1LC, 1LG AND 1LJ
- Inner right brake pad with brake pad wear sensor
- Installation position. Refer to Installing - Meaning of the letters on the brake pads .
Brake Pad Retaining Plate
- Brake pad anti-friction plates
