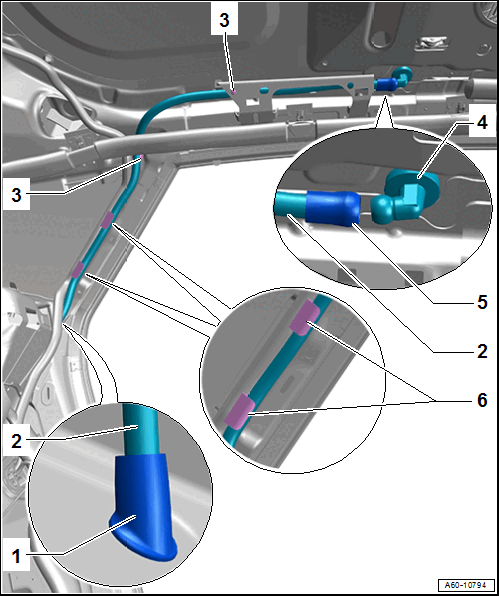

Overview - Water Drain Hoses, A6 Sedan And A7 SPORTBACK
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Push all the way into the body using a soap solution
- Rear Water Drain Hose
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and Installing. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING .
- Clip
- For the water drain hose
- Mount
- Always replace after removing
- For the water drain hose
- Pay attention to the allocation: left gray, right red
- Removing and Installing. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING .
- Coupling Piece
- Attach to the connection
- Bracket
- For the water drain hose and wiring harness
