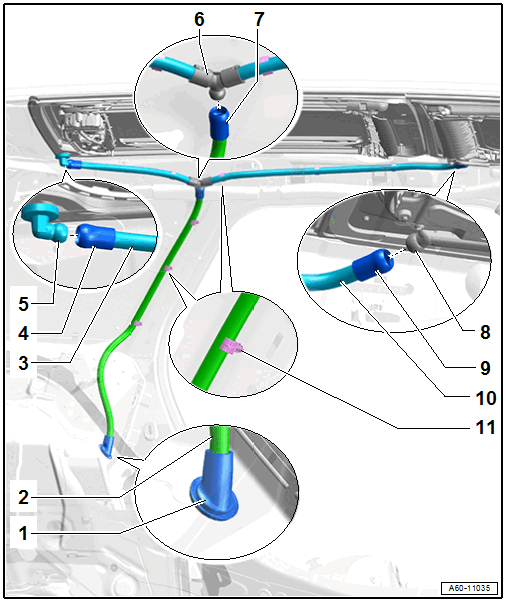

Overview - Water Drain Hoses, A6 AVANT
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Push all the way into the body using a soap solution
- Center Water Drain Hose
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and Installing. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING .
- Rear Water Drain Hose
- From connection fitting
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and Installing. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING .
- Coupling Piece
- Attach to the connection
- Mount
- Always replace after removing
- For the water drain hose
- Pay attention to the allocation: left gray, right red
- Removing and Installing. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING .
- Router
- For the water drain hose
- Coupling Piece
- Attach to the connection
- Connection
- On the sunroof frame
- Coupling Piece
- Attach to the connection
- Front Water Drain Hose
- From connection fitting
- Cleaning. Refer to WATER DRAIN HOSES, CLEANING .
- Removing and Installing. Refer to WATER DRAIN HOSES, REMOVING AND INSTALLING .
- Mount
- For the water drain hose
