Sunroof Shade Motor 2 -V583-, REMOVING AND INSTALLING, A6 AVANT: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Sunroof shade is completely closed.
-- Remove the headliner and place on the seats. Refer to the appropriate service information
.

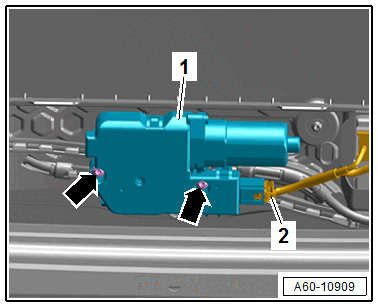

-- Disconnect the connector -2-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the bolts -arrows- and the sunroof shade motor -1-.
