Sunroof Shade Motor -V260-, REMOVING AND INSTALLING, FRONT, A6: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Open the sunroof shade completely.
-- Remove the headliner and place on the seats. Refer to HEADLINER, REMOVING AND INSTALLING .

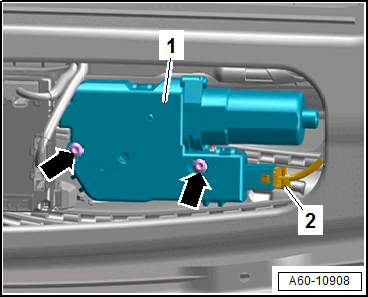

-- Remove the bolts -arrows- and the sunroof shade motor -1-.
-- Disconnect the connector -2-.
