Rear Sunroof Shade Cables, Removing And Installing, A6 AVANT: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the sunroof shade. Refer to REAR SUNROOF SHADE, REMOVING AND INSTALLING, A6 AVANT .
-- Remove the Sunroof Shade Motor 2 -V583-. Refer to Sunroof Shade Motor 2 -V583-, REMOVING AND INSTALLING .
CAUTION:
Risk of damaging the operating cable by deforming it.
- Never sharply bend or kink the operating cable.

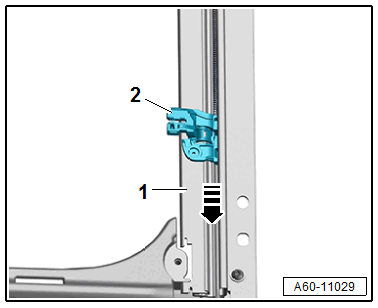

-- Remove the carrier with the sunroof shade cable -2- from the guide -1- in direction of -arrow-.
