Sliding And Tilting Mechanism Cable, Removing And Installing, A6: Installing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Slide the sliding sunroof cable in the guide on the inner bracket.

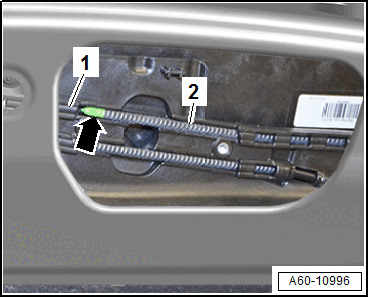

Make sure when inserting that the end -arrow- of the cable -2- engages in the guide -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Slide the driver into the guide rail.

-- Install the sliding and tilting mechanism. Refer to SLIDING AND TILTING MECHANISM, REMOVING AND INSTALLING, A6 .

-- Pull the glass panel tilting rail on both sides all the way toward the rear.

Install in reverse order of removal. Note the following:

-- Perform an adaptation. Refer to Sunroof Motor -V1-, PROGRAMMING .
