Side Trim, Removing And Installing, A6 Sedan: Installing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

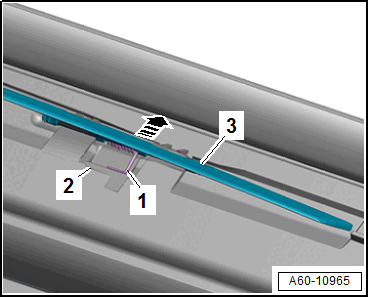

-- Guide the trim -3- in behind the rubber lip.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Guide the trim in the mount in direction of -arrow- ; the end -1- of the spring must audibly engage in the recess -2- on the sunroof frame.
