Overview - Wind Deflector, A6

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

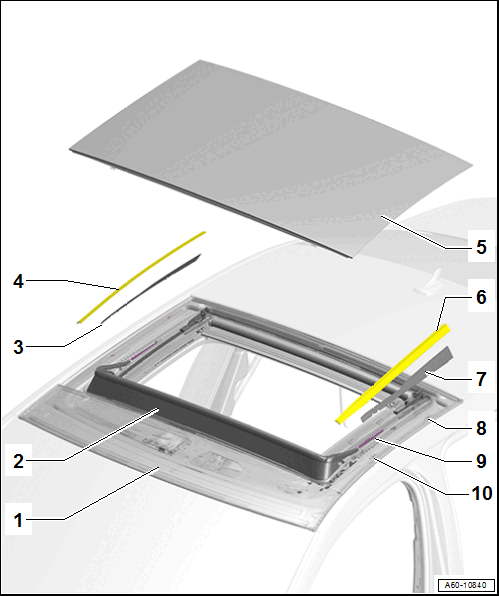

Fig 1: Exploded View Of Wind Deflector, A6

Courtesy of AUDI OF AMERICA, LLC

Glass Trim
- Overview. Refer to OVERVIEW - SLIDING SUNROOF .
Wind Deflector
- Removing and Installing. Refer to WIND DEFLECTOR, REMOVING AND INSTALLING, A6 .
Side Trim
- Sedan only
- Removing and Installing. Refer to SIDE TRIM, REMOVING AND INSTALLING, A6 SEDAN .
Right Rubber Trim
- Sedan only
- Removing and Installing. Refer to GLASS PANEL SEAL, REMOVING AND INSTALLING .
Glass Panel
- Overview. Refer to OVERVIEW - SLIDING SUNROOF .
Left Rubber Trim
- Sedan only
- Removing and Installing. Refer to GLASS PANEL SEAL, REMOVING AND INSTALLING .
Side Trim
- Sedan only
- Removing and Installing. Refer to SIDE TRIM, REMOVING AND INSTALLING, A6 SEDAN .
Spring with Pin
- Sedan only
- For the side trim
Spring
- For wind deflector
Spring with Pin
- Sedan only
- For the side trim
