Overview - Adhesive Beads On Rear Glass Panel, A6 AVANT
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

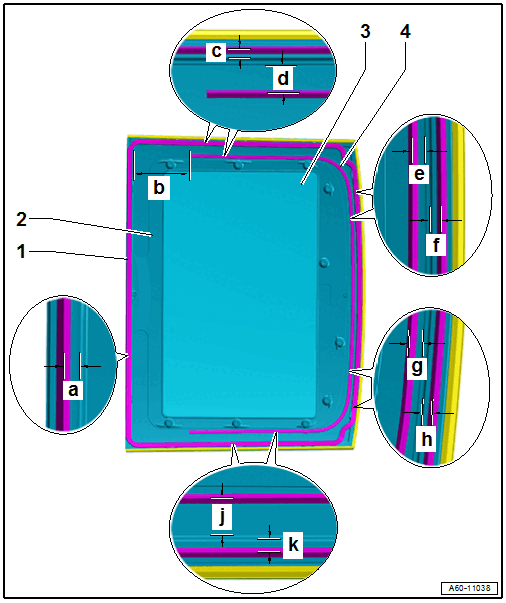

The following dimensions represent the distances at the marked points. This must also be oriented to the layout of the original adhesive bead on the removed component.
- Outer Adhesive Bead
- Dimension -a- = 7.6 mm
- Dimension -c- = 7.6 mm
- Dimension -f- = 7.5 mm
- Dimension -h- = 7.6 mm
- Dimension -k- = 7.8 mm
- Sunroof Shade Frame
- Glass Panel
- Inner Adhesive Bead
- Dimension -b- = 188.8 mm
- Dimension -d- = 29.8 mm
- Dimension -e- = 10 mm
- Dimension -g- = 8.9 mm
- Dimension -j- = 29.6 mm
