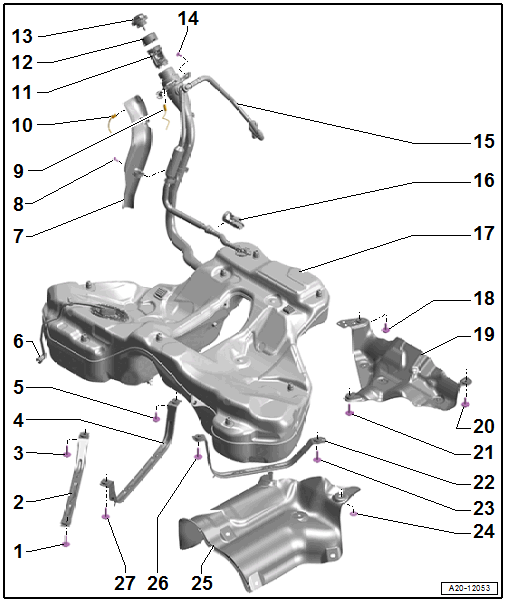

Overview - Fuel Tank, TFSI Vehicles
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 20 Nm
- Right Mounting Strap
- Bolt
- 20 Nm
- Center Mounting Strap
- Bolt
- 20 Nm
- Fuel Line
- To the engine
- Clipped to the fuel tank
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Protective Plate
- For the fuel filler neck
- Only USA and Canada market
- Available only with -item 17- OVERVIEW - FUEL TANK, TFSI VEHICLES => List Item:Fuel Tank
- Allocation. Refer to the Parts Information.
- Bolt
- 2 Nm
- Quantity: 2
- Ground Wire
- For the fuel filler neck
- For discharging electrostatic charge. Refer to Fig 2.
- Make sure the connectors are securely fastened.
- Ground Wire
- For protective plate
- Only USA and Canada market
- For discharging electrostatic charge. Refer to Fig 3.
- Make sure the connectors are securely fastened.
- Closure Cap
- A7 Sportback only
- Removing and Installing. Refer to CLOSURE CAP, REMOVING AND INSTALLING .
- Locking Ring
- For the closure cap
- A7 Sportback only
- Cap
- A6 only
- Attached to the fuel filler door unit with fastener
- Turn until it clicks into place.
- Bolt
- 8 Nm
- Quantity: 2 or 3
- Allocation. Refer to the Parts Information.
- Bleeder Line
- To the EVAP Canister
- Do not kink
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bracket
- For the breather line
- Fuel Tank
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to FUEL TANK, REMOVING, TFSI VEHICLES .
- Bolt
- 20 Nm
- Support Plate
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Left Mounting Strap
- Bolt
- 20 Nm
- Spring Nut
- For the heat shield
- Quantity: 8
- Heat Shield
- For the fuel tank
- Bolt
- 20 Nm
- Bolt
- 20 Nm

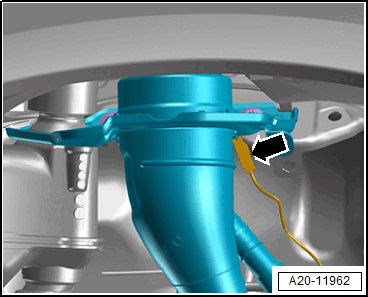

Ground Connection Routing - Rest of World Vehicles
-- Route the ground connection as shown.
-- Make sure the connector is securely fastened:
- The connector -arrow- must be firmly secured on the fuel filler neck metal ring.

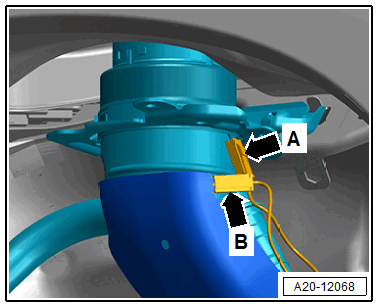

Ground Connection Routing - North American Vehicles
-- Route the ground connections as shown.
-- Make sure the connectors are securely fastened:
- The connector -A arrow- must be connected securely on the metal ring and the connector -B arrow- must be connected securely on the protective plate of the fuel filler neck.
