Upper Steering Column Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

Courtesy of AUDI OF AMERICA, LLC

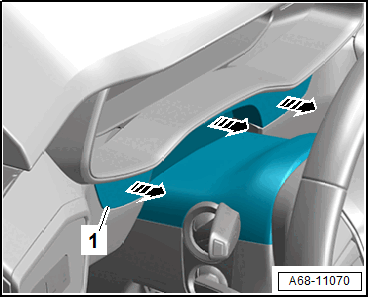

-- Unclip the gap cover -1- at the side and top by hand from the instrument panel -arrows-.

-- Turn the steering wheel counter-clockwise 90° from the straight position.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the upper steering column trim panel -1- from the lower steering column trim panel -arrow-.

-- Push the upper hook toward the front through the opening using the Locking Pin (3 pc.):T40011 and remove the locking pin again immediately.

-- Turn the steering wheel back 180° and repeat the procedure on the opposite side.

-- Bring the steering wheel back into the center (wheels are straight).

-- Disengage the upper steering column trim panel -1- from the lower steering column trim panel and remove.
