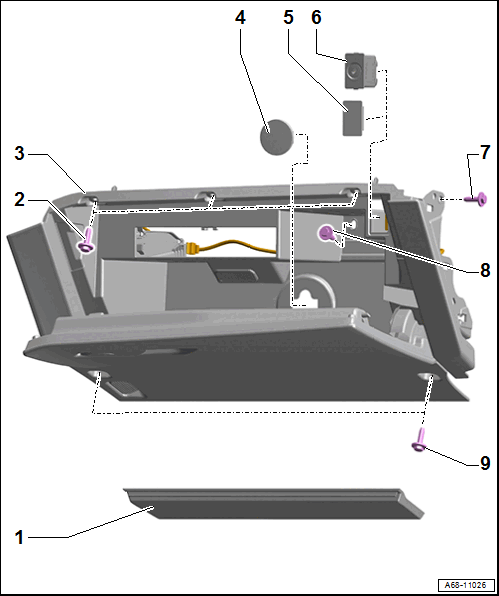

Overview - Glove Compartment
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Insert
- Bolt
- Quantity: 3
- 3 Nm
- Glove Compartment
- Refer to Glove Compartment, Removing and Installing .
- Blind Cover/Vent
- Blind Cover
- Front Passenger Airbag Deactivation Key Switch -E224-
- Installed depending on vehicle equipment
- Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Bolt
- 3 Nm
- Bolt
- Quantity: 2
- 3 Nm
