Glove Compartment Handle Lock Cylinder, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the glove compartment handle. Refer to Glove Compartment Handle, Removing and Installing .

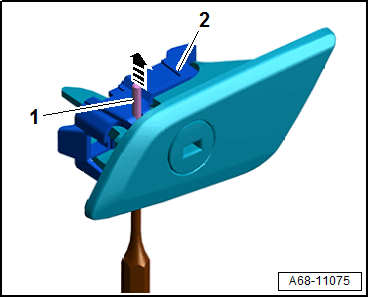

-- Drive out the axle -1- from the locating bore with a punch in the -direction of the arrow-.
-- Remove the cover -2-.

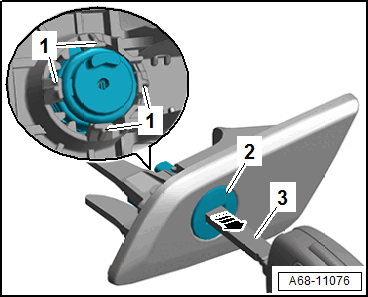

-- To prevent the retainers and pressure springs from falling out, insert the key -3- in the lock cylinder.
-- Release the catches -1- one after the other using a flat-head screwdriver and remove the lock cylinder -2- at the same time -arrow-.
