Glove Compartment Handle Lock Cylinder, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

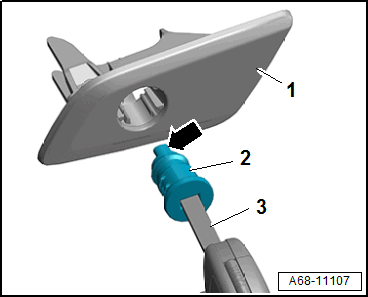

-- Insert the key -3- into the new lock cylinder -2-.
-- Remove the protective cap from the lock cylinder.
-- Insert the lock cylinder -2- into the glove compartment handle -1- until it engages. Pay attention to the installation position of the pin.
Conditions
- The pin -arrow- on the lock cylinder points upward.
