Sun Shade, Removing And Installing: Removing

-- Remove the D-pillar trim panels. Refer to D-Pillar Trim Panel, Removing and Installing .

-- Remove the C-pillar trim panels. Refer to C-Pillar Trim Panel, Removing and Installing .

-- Remove the rear shelf. Refer to Rear Shelf, Removing and Installing .

-- Remove the rear shelf damper.

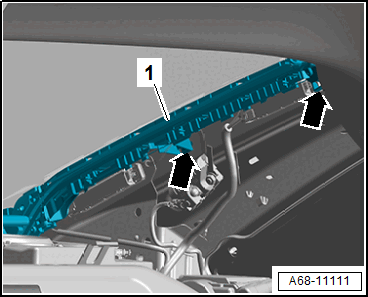

-- Unclip the trim -1- with the Wedge Set -1:T10383/1  -arrows- and remove it.

Courtesy of AUDI OF AMERICA, LLC

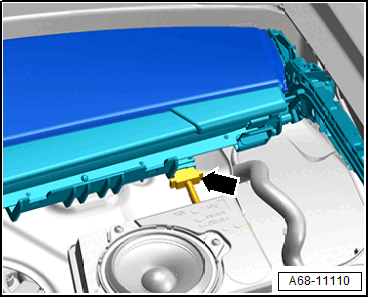

-- Disconnect the connector -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the guide -1- using the Pry Lever:80 - 200  -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Pivot the guide -1- inward.

-- Repeat the procedure for the rail on the opposite side.

-- Remove the bolts -1- inside the luggage compartment.

Fig 1: Locating Bolts -1- For Rear Window Shade In Luggage Compartment

Courtesy of AUDI OF AMERICA, LLC

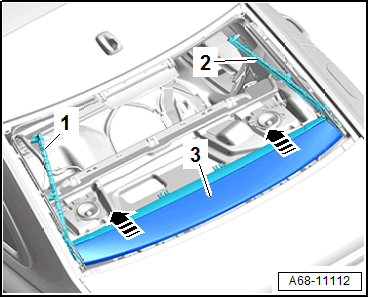

-- Fold the rails -1- and -2- inward.

Courtesy of AUDI OF AMERICA, LLC

-- Slightly remove the sun shade with the rear shelf -3- and remove forward out of the mount on the rear window frame -arrows-.

-- Remove the sun shade with the rear shelf -3-.

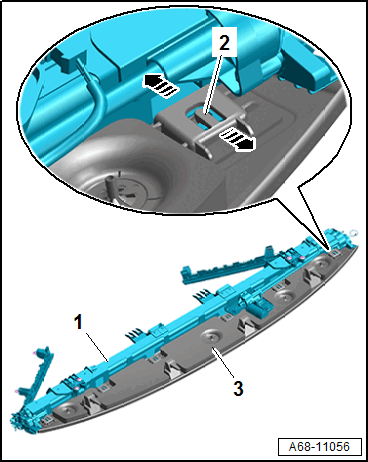

-- If necessary, disconnect the sun shade -1- and rear shelf -3- on the catches from each other -arrows-, for this release the hooks -2- one after another.

Courtesy of AUDI OF AMERICA, LLC
