Overview - Sun Shade

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

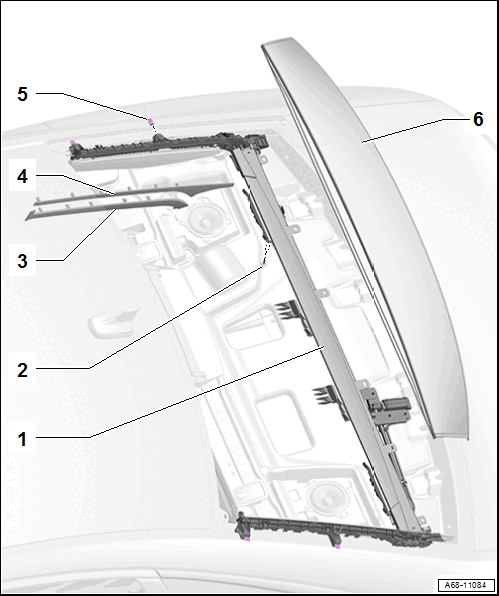

Fig 1: Sunshade Component Overview

Courtesy of AUDI OF AMERICA, LLC

Sun Shade
- Clip into the back part of the rear shelf
- Refer to Sun Shade, Removing and Installing .
Bolts
- Quantity: 4
- 2.5 Nm
Lower Trim for Rail
- Quantity: 2
- Refer to SUN SHADE RAIL TRIM, REMOVING AND INSTALLING
Upper Trim for Rail
- Quantity: 2
- Refer to SUN SHADE RAIL TRIM, REMOVING AND INSTALLING
Clip
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool:T40280 .
- Replace damaged or deformed clips
- Quantity: 4
Rear Shelf, Rear
- Clip into the sun shade
- Insert the sun shade with the rear shelf into the rear window frame and tighten the screws
- Refer to Sun Shade, Removing and Installing .
