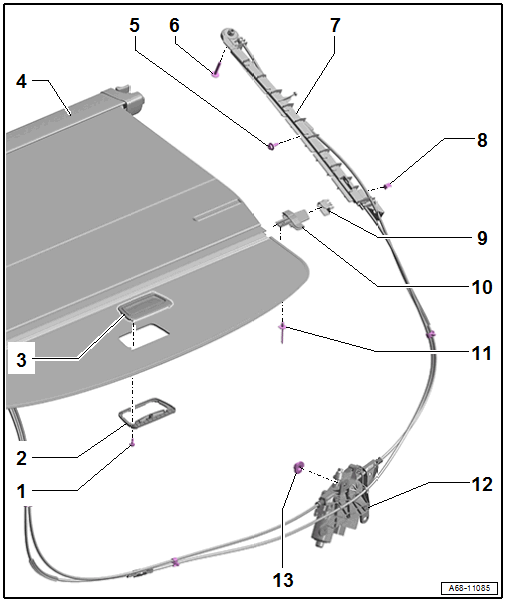

Overview - Luggage Compartment Cover
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- thread cutting
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- Quantity: 2
- 0.35 Nm
- Frame
- Luggage Compartment Cover Handle
- Luggage Compartment Cover
- Bolt
- Quantity: 2
- 2.5 Nm
- Bolt
- Quantity: 2
- 4.5 Nm
- Rail
- Clip
- Remove any clips remaining in the D-pillar mounting points using the Omega Clip Tool:T40280 . To install, insert into the rail.
- Replace damaged or deformed clips
- Quantity: 2
- Luggage Compartment Cover Carrier
- Clipped in the rail
- Quantity: 2
- Refer to D-Pillar Trim Panel, Removing and Installing .
- Locking Pin
- Rivet
- Quantity: 2
- Luggage Compartment Cover Motor 1 -V473-
- Nut
- Quantity: 3
- 2.5 Nm
