Upper Rear Center Console Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the front seats all the way to the rear and then into their lowest position. Then position the backrest all the way toward the rear.

-- Remove the center console side trim panel. Refer to Center Console Side Trim Panel, Removing and Installing .

-- Move the front seats to the middle position and move the backrest into the upright position.

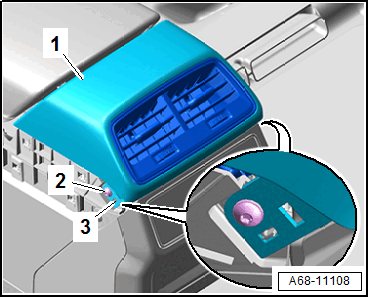

-- Remove the left and right bolts -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the left and right trim -1- on the pins -3-.

-- Remove the trim -1- with the vent toward the rear.

-- Disconnect the connector.
