Center Console Insert Gap Cover, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center console insert. Refer to Center Console Insert, Removing and Installing .

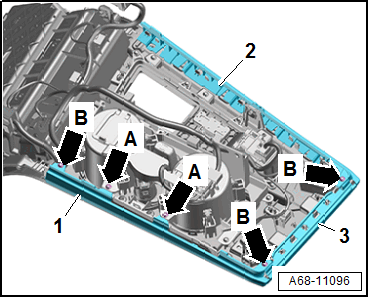

-- If equipped, remove the bolts -arrows A-.
-- Remove the bolts -B arrows-.
-- Disengage and remove the gap cover -1-, -2- and -3-.
