Center Console Insert Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center console insert. Refer to Center Console Insert, Removing and Installing .

-- Remove the cupholder. Refer to CENTER CONSOLE CUPHOLDER, REMOVING AND INSTALLING .

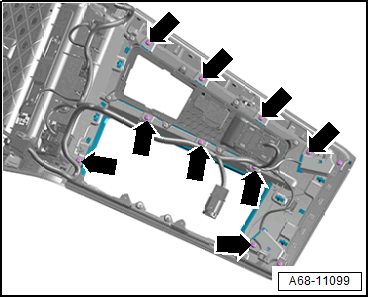

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

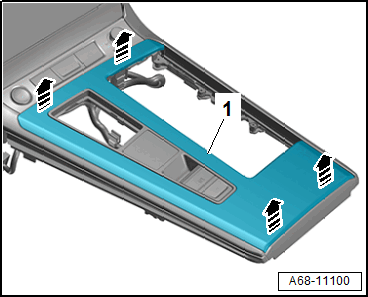

-- Unclip the cover -1- upward -arrows-, starting from the rear, using the Wedge:T10383 .

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the remaining hooks from the cover -1-.

-- Remove the cover -1-.
