Center Console CUPHOLDER, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

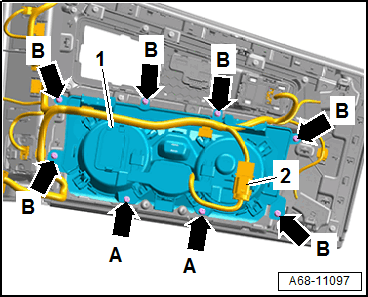

-- Remove the center console insert. Refer to Center Console Insert, Removing and Installing .
-- Disconnect the connector -2-.
-- Unclip the wiring harness and free it up.
-- If equipped, remove the bolts -A arrows-.
-- Remove the bolts -B arrows-.
-- Remove the cupholder -1-.
