CUPHOLDER Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

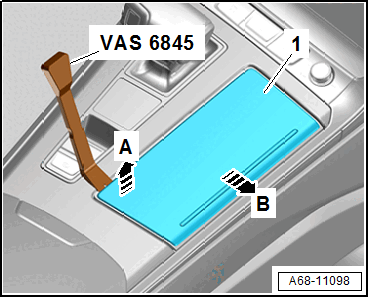

-- Unclip the clip release lever from the Scraper Set:VAS 6845  between the trim and the cover and the trim -1- -arrow A-.

GWWA68-11098Courtesy of AUDI OF AMERICA, LLC

-- Disengage the remaining frame.

-- Lift the trim -1- on the cupholder cover -arrow B- and remove.
