Overview - Rear Shelf

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

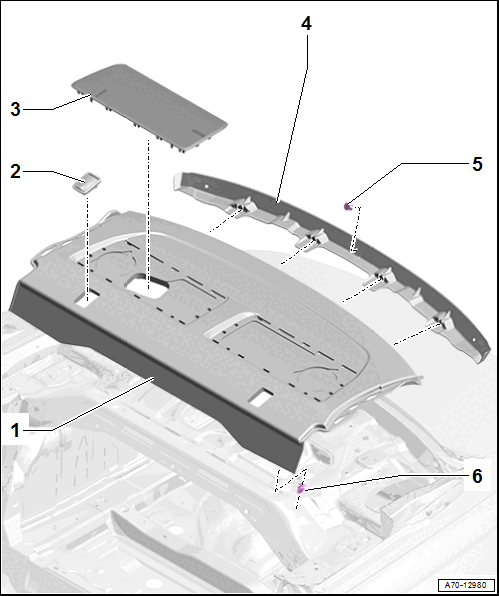

Fig 1: Exploded View Of Rear Shelf

Courtesy of AUDI OF AMERICA, LLC

Rear Shelf
- Insert the rear shelf in the rear window frame and press on the shelf until it clicks into place
- Refer to Rear Shelf, Removing and Installing .
Child Seat Anchor Cap
- Refer to Child Seat Anchor Cover, Removing and Installing .
Speaker Trim
- Installed depending on vehicle equipment
- Quantity: 2
- Refer to SPEAKER TRIM, REMOVING AND INSTALLING
Rear Window Frame Trim Panel
- Refer to Rear Shelf, Removing and Installing .
Expanding Clip
- Removing with Pliers :T40172C
- Quantity: 3
Clip
- Remove any remaining clips in the body mounting points using the Omega Clip Tool :T40280 . To install, insert into the trim panel.
- Replace damaged or deformed clips
- Quantity: 4
