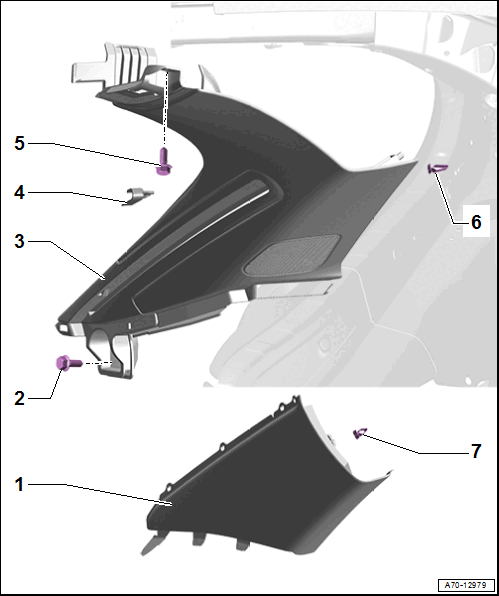

Overview - D-Pillar Trim Panel
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- D-Pillar Trim Panel
- Depending on vehicle equipment. Refer to D-Pillar Trim Panel, Removing and Installing .
- Bolt
- 2.5 Nm
- D-Pillar Trim Panel
- Stretch the lip of the rear lid seal over
- Depending on vehicle equipment. Refer to D-Pillar Trim Panel, Removing and Installing .
- Luggage Compartment Cover Driver
- Clipped in the rail
- Depending on vehicle equipment. Refer to D-Pillar Trim Panel, Removing and Installing .
- Bolt
- 6 Nm
- Clip
- Remove the clip that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Replace damaged or deformed clips
- Clip
- Remove the clip that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Replace damaged or deformed clips
- Quantity: 2
