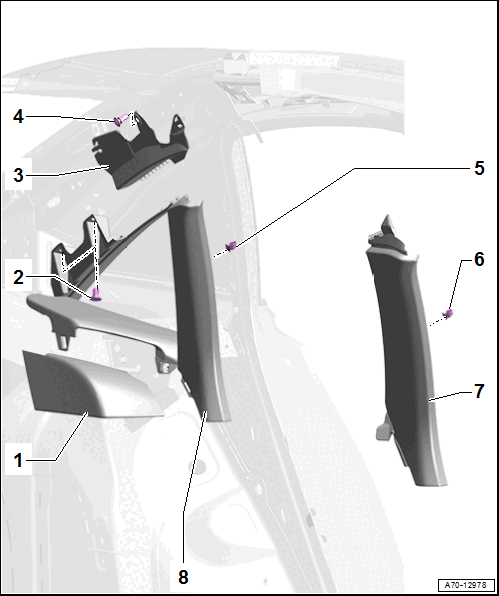

Overview - C-Pillar Trim Panel
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Belt Guide Trim
- Depending on vehicle equipment. Refer to Rear Seat Belt Guide, Removing and Installing .
- Expanding Clip
- Removing with Pliers :T40172C
- Quantity: 2
- Head curtain airbag guide
- Installed depending on vehicle equipment
- Insert in the mounting points on the roof
- Bolt
- 5 Nm
- Clip
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Replace damaged or deformed clips
- Quantity: 2
- Clip
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Replace damaged or deformed clips
- Quantity: 2
- C-Pillar Trim Panel
- Depending on vehicle equipment. Refer to C-Pillar Trim Panel, Removing and Installing .
- C-Pillar Trim Panel
- Depending on vehicle equipment. Refer to C-Pillar Trim Panel, Removing and Installing .
