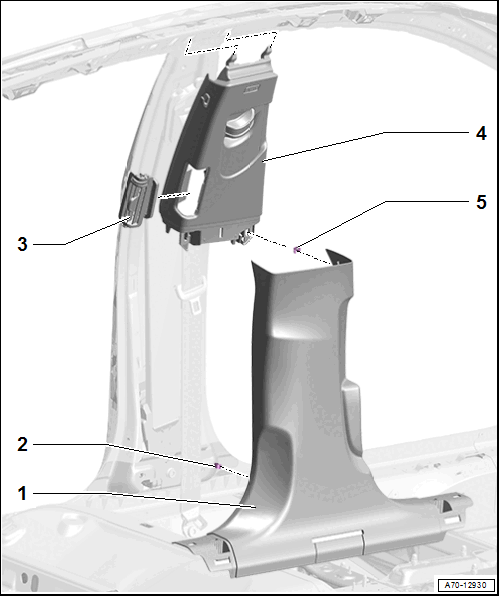

Overview - B-Pillar Trim Panel
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- B-Pillar Lower Trim Panel
- Insert in the mounting points at the bottom, attach to the B-pillar and clip into the B-pillar upper trim panel
- Stretch the door seal lip over.
- Refer to B-Pillar Lower Trim Panel, Removing and Installing .
- Clip
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Replace damaged or deformed clips
- Quantity: 4
- Vent
- Installed depending on vehicle equipment
- Refer to B-Pillar Upper Trim Panel, Removing and Installing .
- B-Pillar Upper Trim Panel
- Insert in the upper mounting points on the roof and attach to the B-pillar
- Stretch the door seal lip over.
- Refer to B-Pillar Upper Trim Panel, Removing and Installing .
- Clip
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Replace damaged or deformed clips
- Quantity: 2
