Overview - A-Pillar Trim Panel
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

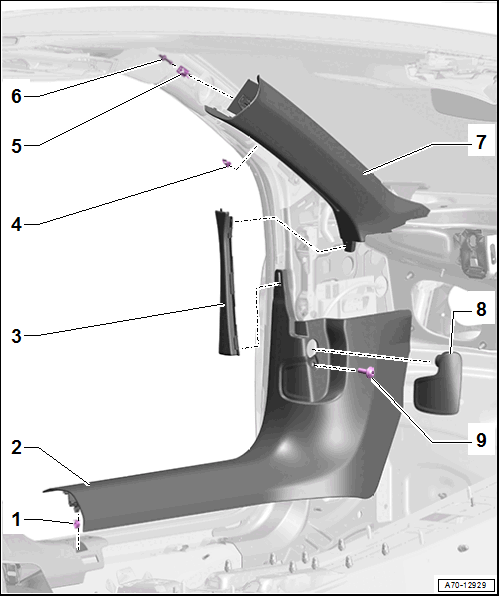

- Clip
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Replace damaged or deformed clips
- Quantity: 4
- A-Pillar Lower Trim Panel
- Pushed forward in the carpet
- Stretch the inner door seal lip over.
- RHD. Refer to Fig 2.
- Refer to A-Pillar Lower Trim Panel, Removing and Installing .
- A-Pillar Gap Cover
- Clip into the A-pillar trim panels
- Stretch the inner door seal lip over.
- Refer to A-Pillar Upper Trim Panel, Removing and Installing .
- Clip
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool :T40280 .
- Replace damaged or deformed clips
- Clip
- With hooks
- Replace after removing the A-pillar trim panel
- Retaining Pin
- 3.5 Nm
- A-Pillar Upper Trim Panel
- Stretch the inner door seal lip over.
- Refer to A-Pillar Upper Trim Panel, Removing and Installing .
- Operating Lever Handle
- For the hood latch
- Only driver side
- Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
- Bolt
- Only driver side
- 2.5 Nm
Overview - A-Pillar Lower Trim Panel, RHD
1 -
Clip
-
Replace any damaged or deformed clips
2 -
Relay and Fuse Panel 2 -SR2-
3 -
A-Pillar Lower Trim Panel
4 -
Fuse Panel Cover
