B-Pillar Lower Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the front seat all the way to the front and into the highest position.

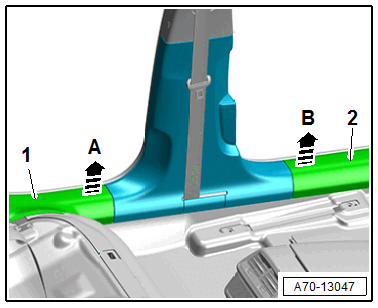

-- Unclip the A-pillar lower trim panel -2- from the B-pillar lower trim panel -arrow B-.

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the sill panel -1- from the B-pillar lower trim panel -arrow B- -arrow A-.

-- Free up the trim panel -1- near the door seals and remove by hand from the B-pillar upper trim panel -A arrows-.

Fig 2: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

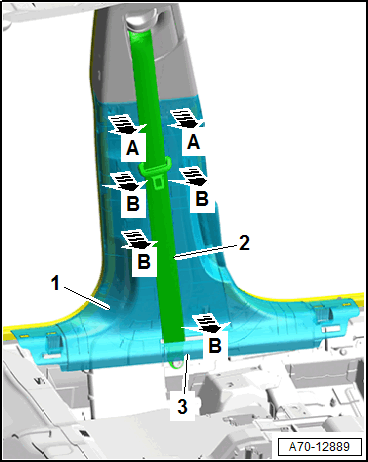

-- Unclip the trim panel -1- with Pry Lever :80-200 from the B-pillar -arrows B-.

-- Release the seat belt guide -3- and guide out seat belt webbing -2-.

-- Remove the trim panel -1- upward.
