A-Pillar Upper Trim Panel, Removing And Installing: Installing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
Conditions
- Do not pinch the head curtain airbag when installing the upper A-pillar trim panel.

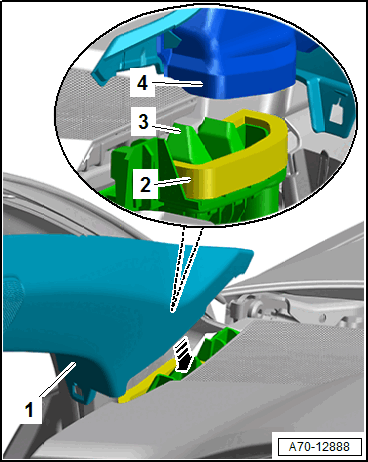

-- To install the trim panel -1-, insert a new clip with the hooks into the trim panel and bring it into its installation position.
-- Insert the trim panel -1- into the instrument panel mount -arrow-.
Conditions
- The air duct -3- must sit correctly on the air duct connection -4- in the instrument panel.
- If the foam seal -2- is damaged or not bonded correctly, it may loosen when inserting the air duct and may cause noises when the A/C system is operating.
