A-Pillar Lower Trim Panel, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the front seat as far back as possible.

-- Remove the instrument panel side cover. Refer to Instrument Panel Side Cover, Removing and Installing .

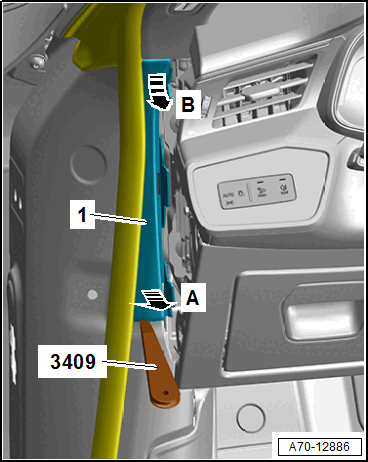

-- Unclip the A-pillar gap cover -1- using the Trim Removal Wedge :3409 -arrow A- and disengage at the A-pillar upper trim panel -arrow B-.

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

Driver side

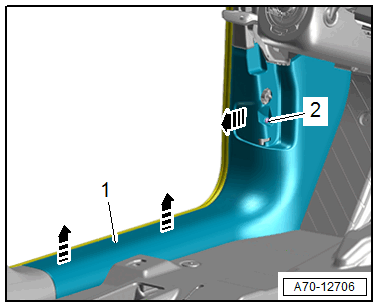

-- Remove the hood latch hood release cable operating lever. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .

-- Remove the bolt -2-.

Fig 2: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

Continuation for all vehicles

Front passenger side

-- Remove the glove compartment. Refer to Glove Compartment, Removing and Installing .

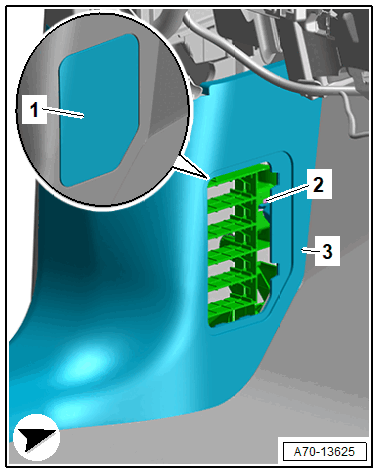

-- Remove the fuse panel cover -1-. Refer to Owner's Manual.

Fig 3: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Remove the trim panel -3- from the retainer -arrow- on the Relay and Fuse Panel 2 - SR2- -2-. (example image Audi A6)

Continuation for all vehicles

-- Free up the trim panel -3- in the door seal area.

Fig 4: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Starting at the back, unclip the trim panel -3- from the side sill -lower arrows- using the Trim Removal Wedge :3409 and remove toward the rear -right arrow-.

-- Remove the trim panel -3-.
