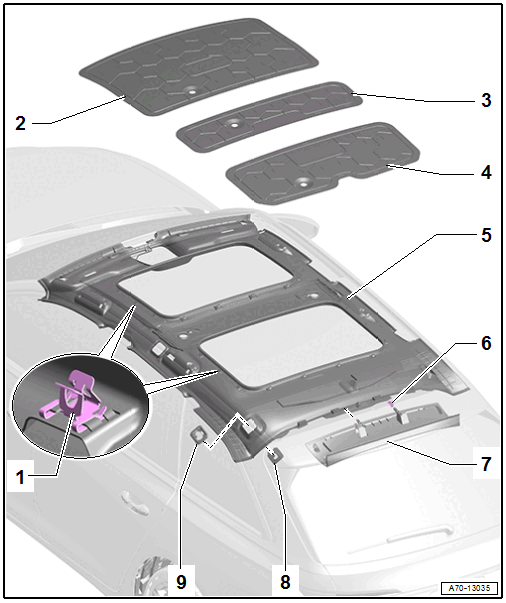

Overview - Headliner, A6 AVANT
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Clip
- For vehicles with sliding sunroof
- Replace damaged or deformed clips
- Quantity 28
- Front Roof Reinforcement
- For vehicles without a sliding sunroof
- Install on the body. Refer to Roof Reinforcement, Removing and Installing .
- Center Roof Reinforcement
- For vehicles without a sliding sunroof
- Install on the body. Refer to Roof Reinforcement, Removing and Installing .
- Rear Roof Reinforcement
- For vehicles without a sliding sunroof
- Install on the body. Refer to Roof Reinforcement, Removing and Installing .
- Headliner
- Refer to Headliner, Lowering .
- Refer to Headliner, Lowering for Roof Antenna Removal .
- Refer to Headliner, Removing and Installing .
- Clip
- Remove any remaining clips from the body using Omega Clip Tool :T40280 and insert them for installation of the roof end strip.
- Replace damaged or deformed clips
- Quantity: 2
- Roof End Strip
- Insert in the D-pillar trim panels and press on it until it audibly engages.
- Stretch the lip of the rear lid seal over
- Refer to Roof End Strip, Removing and Installing .
- Mounting Eye Trim
- Clipped to the bracket in the headliner
- Quantity: 4
- Trim Bracket
- Clipped into the headliner with the trim
- Quantity: 4
