Rear Pull Handle, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the door trim panel. Refer to Rear Door Trim Panel, Removing and Installing .

-- Place the door trim panel on a soft surface.

-- Disengage and remove the insulation mat.

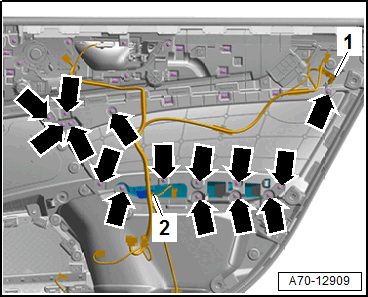

-- If equipped: remove the door ambient lighting lamps -1- on the back of the door trim panel by releasing the retainers and removing the lamp from the fiber-optic cable.

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

-- Remove the bolts -arrows-.

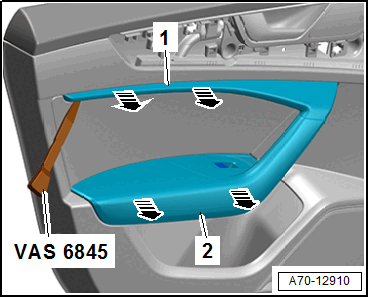

-- Loosen the trim -3- from the door trim panel using the scraper no. 1 from the Scraper Set :VAS 6845 -arrows-.

Fig 2: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the pull handle/armrest -2- -arrows-.

-- Remove the pull handle/armrest -2- with the trim -1-.

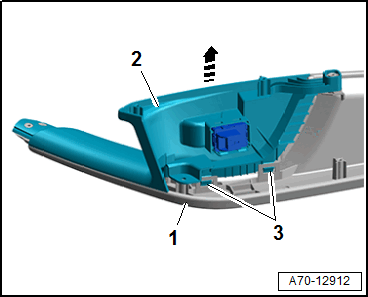

-- Unclip the switch mount -2- with the Wedge Set :T10383 from the pull handle -1- -arrow-, for this, loosen the retainers -3-.

Fig 3: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Remove the switch mount -2-.
