Overview - Door Window Sun Shade

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

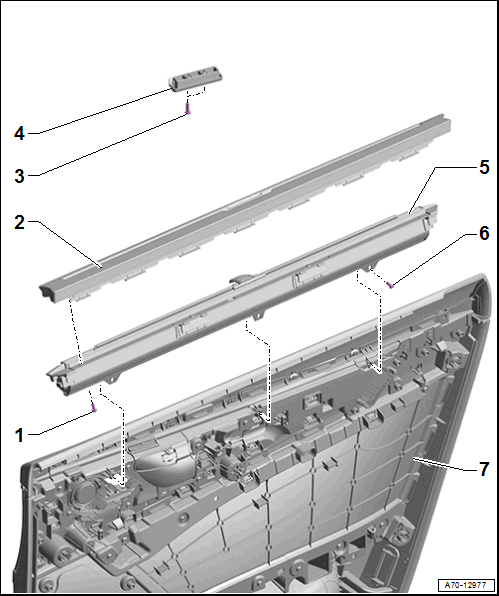

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Quantity: 4
- 1.2 Nm
Sun Shade Cover
- Refer to Door Window Sun Shade, Removing and Installing .
Bolt
- Quantity: 2
- 1.7 Nm
Sun Shade Mount
- Refer to Sun Shade Mount, Removing and Installing .
Sun Shade
- Refer to Door Window Sun Shade, Removing and Installing .
Bolt
- Quantity: 3
- 1.2 Nm
Rear Door Trim Panel
- Refer to Rear Door Trim Panel, Removing and Installing .
