Vehicle Tool Kit Mount, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Lift the luggage compartment floor and fold it forward.
-- If equipped, remove the tire mobility kit mount.
-- Remove the nuts -arrows-.

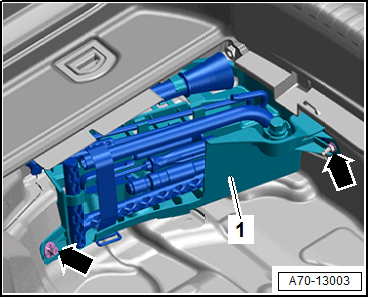

Fig 1: NO CONTENT
Courtesy of AUDI OF AMERICA, LLC
-- Disengage and remove the vehicle tool kit mount -1-.
