Spare Tire Well Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the luggage compartment floor. Refer to Luggage Compartment Floor, Removing and Installing .

-- Remove the lock carrier trim panel. Refer to Lock Carrier Trim Panel, Removing and Installing .

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM , or LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING, VEHICLES WITH HIGH-VOLTAGE SYSTEM .

Continuation for all vehicles

-- Remove the spare tire.

-- Remove the tire mobility kit mount.

-- Remove the vehicle tool kit mount. Refer to VEHICLE TOOL KIT MOUNT, REMOVING AND INSTALLING .

Continuation for all vehicles

-- Remove the vehicle jack.

-- Remove the tool box.

Continuation for all vehicles

Vehicles with subwoofer

-- Remove the subwoofer. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .

Continuation for all vehicles

Vehicles with TV tuner

-- Remove the TV tuner. Refer to the appropriate service information .

Continuation for all vehicles

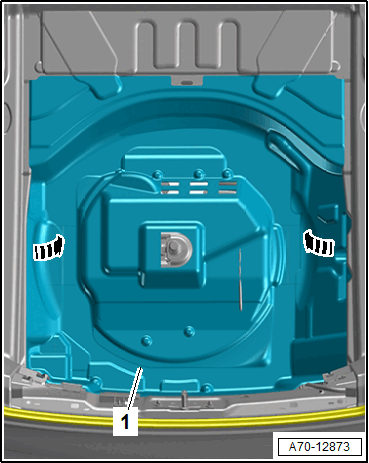

-- Remove the side trim -1- under the luggage compartment side trim panels -arrows-.

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Disengage and remove trim -1-.
