Rail, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- If equipped, remove the luggage fastening strap or the telescopic luggage bar.

-- Remove the bolts -arrows- and remove the rail -1-.

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

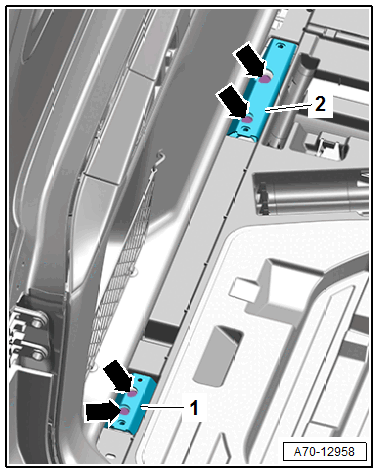

Rail mount, removing

-- Remove the luggage compartment floor.

-- Remove the bolts -arrows-.

Fig 2: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Disengage and remove the mount -1- and -2-.

Continuation for all vehicles
