Overview - Lower Rear Lid Trim Panel, A6 Sedan

Fig 1: Exploded View Of Rear Lid Lower Trim Panel (A5 Coupe)

Courtesy of AUDI OF AMERICA, LLC

1. Rear Lid Hinge Trim Panel
   • Quantity: 2
   • Refer to Rear Lid Lower Trim Panel, Removing and Installing  .
2. Expanding Clip
   • Quantity: 4
3. Clip
   • Remove any clips still in the rear lid mounting points using the Omega Clip Tool :T40280  and insert into the trim panel to install
   • Replace damaged or deformed clips
   • Quantity: 10
4. Anti-Theft Protection
   • Clip into rear lid
   • Refer to Rear Lid Lower Trim Panel, Removing and Installing  .
5. Rear Lid Latch Trim Panel
   • Refer to Rear Lid Lower Trim Panel, Removing and Installing  .
6. Expanding Nut
7. Stop Strip Bracket
   • Quantity: 2
8. Stop Strip
   • Quantity: 2
   • Refer to Rear Lid Lower Trim Panel, Removing and Installing  .
9. Rear Lid Trim Panel
   • North American versions: emergency release
   • Refer to Rear Lid Lower Trim Panel, Removing and Installing  .
10. Bolt
    • Installed depending on vehicle equipment
    • 2 Nm
11. Emergency Release Cover
    • For North American Region only
12. Emergency Triangle
13. Emergency Triangle Bracket

Overview - Emergency Release, Market-Specific Version

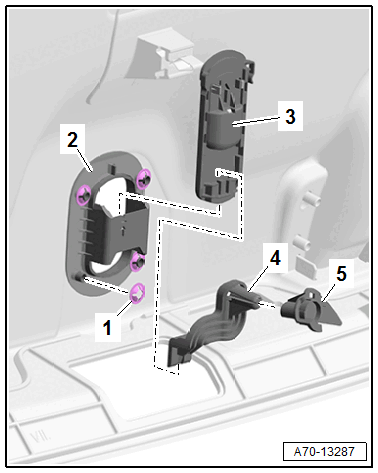

Fig 2: Emergency Release, Market-Specific For North America

Courtesy of AUDI OF AMERICA, LLC

1 -

Lock Washer

-

Quantity: 4

2 -

Emergency Release Trim

3 -

Emergency Release Actuator

-

Refer to REAR LID EMERGENCY RELEASE, REMOVING AND INSTALLING, A6 SEDAN MARKET-SPECIFIC VERSION

4 -

Emergency Release Adjusting Element

-

Refer to REAR LID EMERGENCY RELEASE, REMOVING AND INSTALLING, A6 SEDAN MARKET-SPECIFIC VERSION

5 -

Rear Lid Latch Adapter

-

Refer to LATCH, REMOVING AND INSTALLING .
