Speaker Mount, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the speaker trim. Refer to Speaker Trim, Removing and Installing .

-- If equipped, remove the speaker. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .

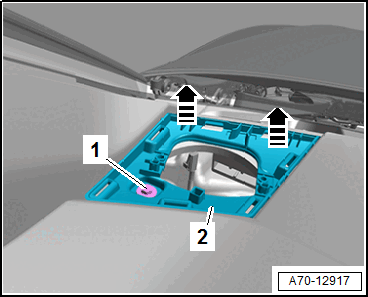

-- Remove the bolt -1-.

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the speaker mount -2- using the Trim Removal Wedge :3409 -arrows-.
