Outer Instrument Panel Vent, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

-- Remove the instrument panel side cover. Refer to Instrument Panel Side Cover, Removing and Installing .

-- Remove the instrument panel side decorative trim. Refer to INSTRUMENT PANEL SIDE DECORATIVE TRIM, REMOVING AND INSTALLING .

-- Remove the instrument cluster trim. Refer to Instrument Cluster Trim, Removing and Installing .

-- Remove the instrument panel upper decorative trim. Refer to INSTRUMENT PANEL UPPER DECORATIVE TRIM, REMOVING AND INSTALLING, DRIVER SIDE .

-- Remove the instrument panel center decorative trim. Refer to INSTRUMENT PANEL CENTER DECORATIVE TRIM, REMOVING AND INSTALLING, DRIVER SIDE .

-- Remove the instrument panel lower decorative trim. Refer to INSTRUMENT PANEL LOWER DECORATIVE TRIM, REMOVING AND INSTALLING, DRIVER SIDE .

-- Remove the decorative trim bracket. Refer to DRIVER SIDE DECORATIVE TRIM BRACKET, REMOVING AND INSTALLING .

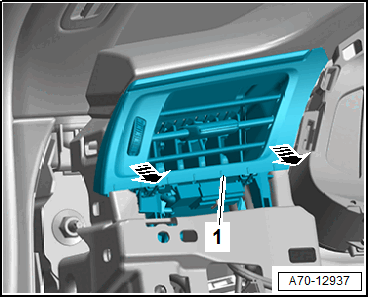

-- Remove the instrument panel vent -1- from the instrument panel -arrows-.

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors.
