Instrument Cluster Trim, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.

Fig 1: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the steering column trim panel gap cover -1- at the side and top by hand from the instrument panel -arrows-.

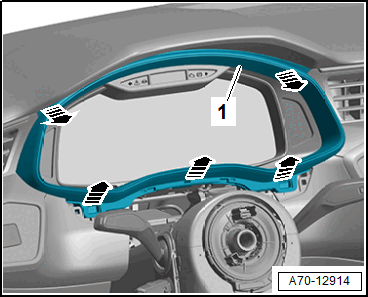

-- Starting at the bottom unclip the instrument cluster trim -1- -arrows- using the Trim Removal Wedge :3409 .

Fig 2: NO CONTENT

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the remaining clips and remove the instrument cluster trim -1-.
