Front Center Defroster Vent, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center speaker trim. Refer to Speaker Trim, Removing and Installing .
Vehicles with speaker
-- Remove the speaker. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
Continuation for all vehicles
Vehicles with near field communication antenna
-- Remove the Near Field Communication Antenna -R269-. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .
Continuation for all vehicles

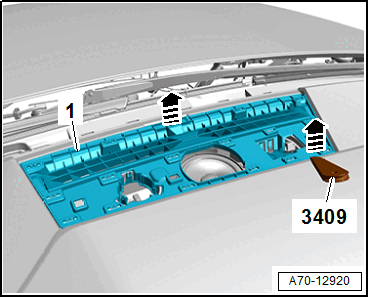

-- Unclip the defroster vent -1- using the Trim Removal Wedge :3409 -arrows-.
-- Disengage the remaining retainers and remove the defroster vent -1-.
