Rear Seat Belt Latch, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bench seat. Refer to REAR BENCH SEAT, REMOVING AND INSTALLING .
Right Seat Belt Latch with Rear Belt End Fitting
-- If equipped, disconnect the connector -2- for the seat belt switch and unclip the cable holder -4-.
-- Remove the nut -1-.
-- Remove the belt end fitting -3- with the seat belt latch -5-.
-- Remove the clip and remove the seat belt latch -5-.
- -arrow- anti-twist mechanism on floor panel.
Continuation for all vehicles

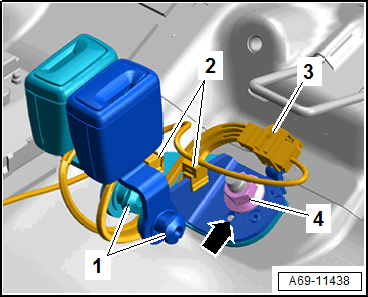

Center and Left Seat Belt Latch
-- If equipped, disconnect the connector -3- for the seat belt switch and unclip the cable holder -2-.
-- Remove the nut -4-.
-- Remove the seat belt latches -1-.
Continuation for all vehicles
