Overview - Knee Airbag
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

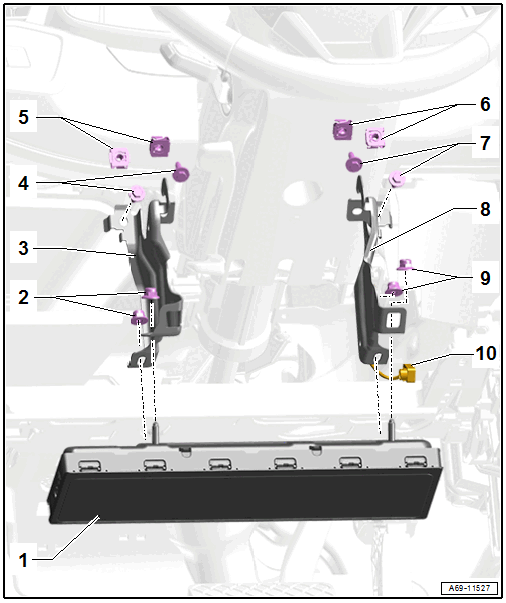

Overview - Knee Airbag, Driver Side
- Driver Side Knee Airbag
- With Driver Knee Airbag Igniter -N295-
- Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, DRIVER SIDE
- Nuts
- Replace after removing
- 8 Nm
- Bracket
- Bolts
- 3 Nm
- Spring Nuts
- Insert in the mounting points on the instrument panel crossmember
- Spring Nuts
- Insert in the mounting points on the instrument panel crossmember
- Bolts
- 3 Nm
- Bracket
- Nuts
- Replace after removing
- 8 Nm
- Connector
- Driver Knee Airbag Igniter -N295-

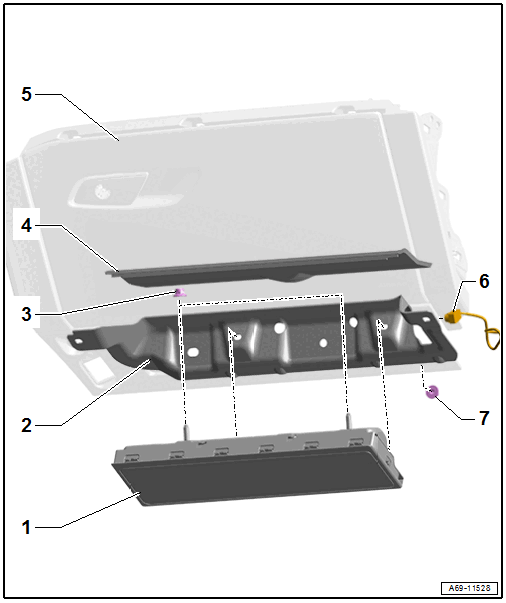

Overview - Knee Airbag, Front Passenger Side
- Front Passenger Knee Airbag
- With Front Passenger Knee Airbag Igniter -N296-
- Refer to Knee Airbag with Igniter, Removing and Installing .
- Bracket
- Nut
- Quantity: 2
- Replace after removing
- 8 Nm
- Glove Compartment Insert
- Glove Compartment
- Refer to Glove Compartment, Removing and Installing .
- Connector
- Front Passenger Knee Airbag Igniter -N296-
- Nut
- Quantity: 2
- Replace after removing
- 8 Nm
