Driver/Front Passenger Side Rear Thorax Airbag Crash Sensor G256/G257, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the sill panel. Refer to Sill Panel, Removing and Installing .
-- Fold the insulation mat over the crash sensor.
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

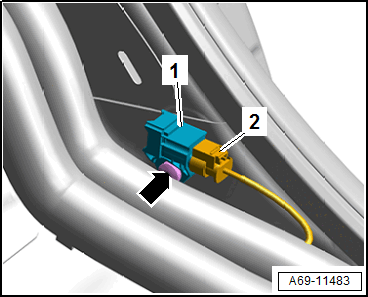

-- Remove the bolt -arrow- and remove the thorax airbag crash sensor -1- from the body.
-- Disconnect the connector -2-.
-- To do this pull out the connector lock -2-, push down -arrow-, and disconnect the connector -1- on the crash sensor.
