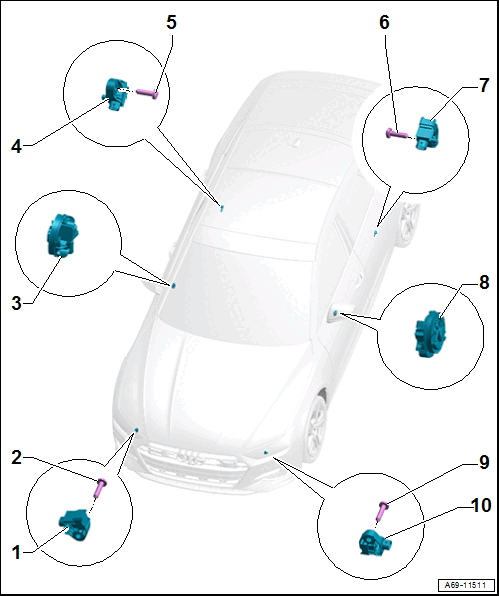

Component Location Overview - Airbag Crash Sensors
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Passenger Side Front Airbag Crash Sensor -G284-
- Component location
- All except RS 6/RS 7: right on the connecting brace under the headlamps
- RS 6 / RS 7: at the upper right of the lock carrier
- Refer to Driver Front Airbag Crash Sensor G283, Removing and Installing .
- Bolt
- 9 Nm
- Front Passenger Thorax Airbag Crash Sensor -G180-
- Component location: inside the door
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- Refer to Driver/Front Passenger Thorax Airbag Crash Sensor G179/G180, Removing and Installing .
- Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- Component location: behind the sill panel strip
- Refer to Driver/Front Passenger Side Rear Thorax Airbag Crash Sensor G256/G257, Removing and Installing .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Driver Side Rear Thorax Airbag Crash Sensor -G256-
- Component location: behind the sill panel strip
- Refer to Driver/Front Passenger Side Rear Thorax Airbag Crash Sensor G256/G257, Removing and Installing .
- Driver Thorax Airbag Crash Sensor -G179-
- Component location: inside the door
- Make sure the seal is seated correctly. Replace the crash sensor if damaged or deformed
- Refer to Driver/Front Passenger Thorax Airbag Crash Sensor G179/G180, Removing and Installing .
- Bolt
- 9 Nm
- Driver Front Airbag Crash Sensor -G283-
- Component location
- All except RS 6/RS 7: left on the connecting brace under the headlamps
- RS 6 / RS 7: at the upper left of the lock carrier
- Refer to Driver Front Airbag Crash Sensor G283, Removing and Installing .
