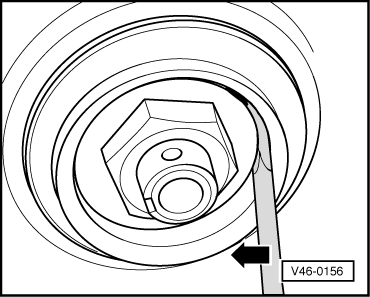

Fig. 2 Adjusting wheel bearing play

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
GWWV46-0156Courtesy of AUDI OF AMERICA, LLC

Wheel bearing play is correctly adjusted if it is still possible to move the thrust washer with the screwdriver by applying finger pressure (do not attempt to pry on the thrust washer).

-- To adjust, tighten hex nut firmly while turning wheel so that bearing does not jam. Check that the thrust washer can still be moved with a screwdriver. Then, secure with slotted locking ring and new cotter pin.
