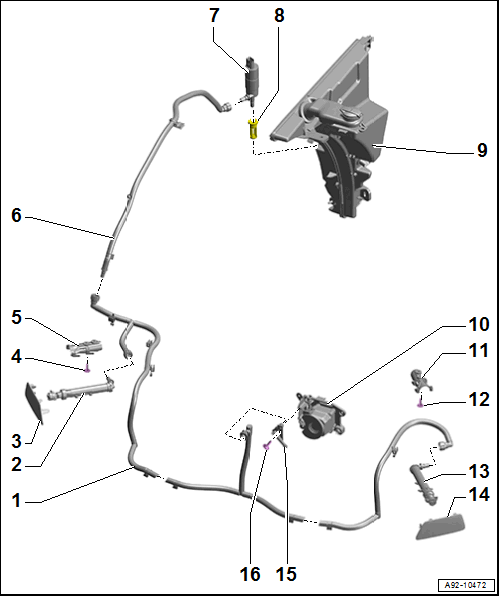

Overview - Headlamp Washer System
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Hose
- Headlamp Washer System Washer Nozzle
- Cover
- Bolt
- Quantity: 2
- 2.5 Nm
- Mount
- Washer Fluid Hose
- Headlamp Washer System Pump -V11-
- Refer to appropriate Service Information .
- Grommet
- Washer Fluid Reservoir
- Night Vision System Camera -R212-
- Mount
- Bolt
- Quantity: 2
- 2.5 Nm
- Headlamp Washer System Washer Nozzle
- Cover
- Night Vision System Camera -R212- Washer Nozzle
- Bolt
- Quantity: 2
- 2.5 Nm
