Overview - Auxiliary Washer System

WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

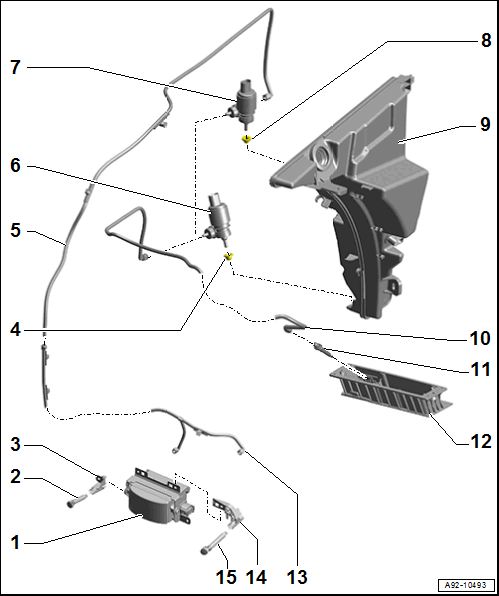

Fig 1: Auxiliary Washer System Overview

Courtesy of AUDI OF AMERICA, LLC

Laser Distance Regulation Control Module -J1122-
Right Washer Nozzle
- Refer to WASHER NOZZLE FOR LASER DISTANCE REGULATION CONTROL MODULE J1122, REMOVING AND INSTALLING
Right Washer Nozzle Mount
- Refer to WASHER NOZZLE FOR LASER DISTANCE REGULATION CONTROL MODULE J1122, REMOVING AND INSTALLING
Grommet
Washer Fluid Hose
Windshield Washer Pump -V5-
Rear Window Washer Pump -V13-
- Refer to REAR WINDOW WASHER PUMP V13, REMOVING AND INSTALLING
Grommet
Washer Fluid Reservoir
- Refer to Washer Fluid Reservoir, Removing and Installing .
Washer Fluid Hose
- Depending on the equipment version, with a connection to the Rear Window Washer Pump -V13- or to the Windshield Washer Pump -V5-
Rearview Camera/Peripheral Camera Washer Nozzle
- Refer to WASHER NOZZLE FOR REARVIEW CAMERA R189/REAR PERIPHERAL CAMERA R246, REMOVING AND INSTALLING
Handle Button
Washer Fluid Hose
Left Mount for Washer Nozzle
- Refer to WASHER NOZZLE FOR LASER DISTANCE REGULATION CONTROL MODULE J1122, REMOVING AND INSTALLING
Left Washer Nozzle
- Refer to WASHER NOZZLE FOR LASER DISTANCE REGULATION CONTROL MODULE J1122, REMOVING AND INSTALLING
