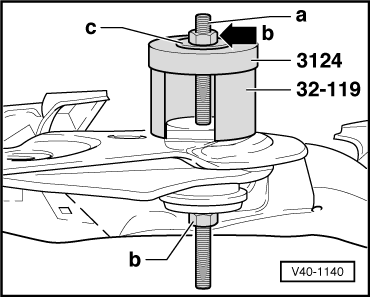

Fig. 5 Installing front subframe bushing
WARNING: This page is about a different car, the 2024 Audi S6 and 2024 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Pull bushing in to stop.
Use additional tools described in Fig. 1 Removing and installing inner control arm bushing .
-- Coat bushing with acid-free lubricant and tighten upper nut -b- (arrow) until shoulder of bearing contacts subframe assembly.
